Ref. AKC-108.MD9154
Xh-m548 amplificador tpa3116d2 dual bluetooth 2x120w
Stock: 0 Und. Ref. AKC-108.MD9154
Precio (IVA inc.) 20,45 €
| Unidades | ≥ 2 | ≥ 3 | ≥ 4 | ≥ 5 |
| DescuentoDescuentoprecio | -3%-0,4815,49 | -5%-0,8015,17 | -7%-1,1214,85 | -10%-1,6014,37 |
Si tienes dudas envíanos un WhatsApp
Envío Rápido
en 14h o 24/48h
Pago Seguro
Tarjeta, Bizum...
Garantía
Calidad asegurada
Especialistas
Consulta tus dudas
Especificaciones

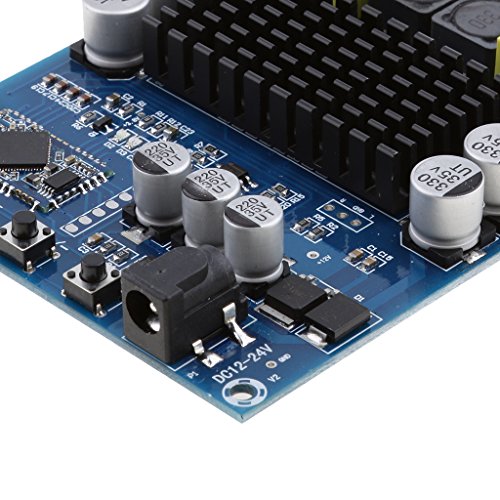

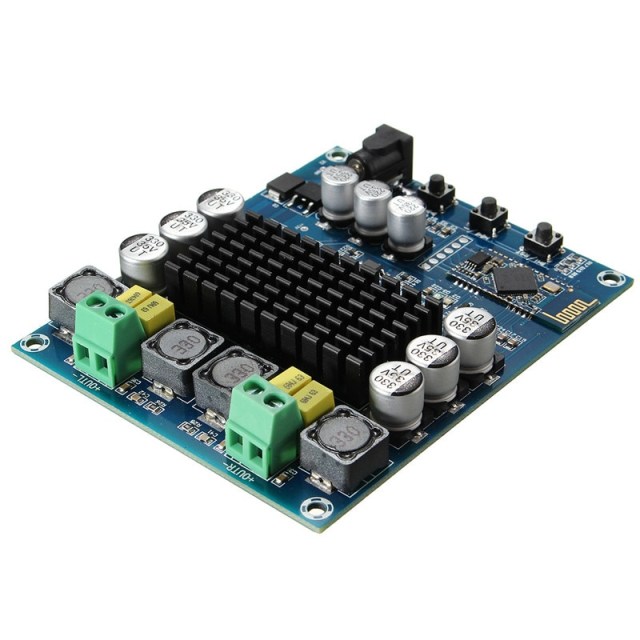

Description:-Dual-channel 120W + 120W digital amplifier board audio stereo receiver module; With patch inductance helps to filter
noise, picking the signal, stabilizing current and suppressing interference
-XH-M548 amplifier board adopts TPA3116D2 digital ampliy chip which are high efficient, Class-D operation and CSR8635
V4.0 bluetooth; With more than 90% power efficience and low consumption
-ONE DC 12-24V 2.1 port for powering the amplifier board, TWO output terminals, THREE keys: "PLAY/STOP", "PRE/VOL-"
"NEXT/VOL+"; Bluetooth working indicator and FOUR ?3.2mm holes at each conner of the board for installation
-Adopt advanced Bluetooth connection that you don't have to connect the AUX wire while you are playing your mobile
phone. Turn on your bluetooth on your devices, search "BT Speaker" and connect, about 10m control distance
-Array shape heatsink chip let the heat dissipate convectly, TPA3116D2 is belong to digital chip which causes lower
heat and the black coating around the heatsink can enhance the heat dissipation get to a greater extent
Specification:
Specifications:
Model: XH-M548
Chip Type: TPA3116D2
Bluetooth module: btm835/csr8635(4.0)
Transmission distance:Max 10m
Voltage:DC12-24V
Current:>3A
Output Power:120Wx2
Efficiency ratio:>90%
Sound track: Dual track
?br> Bluetooth module Parameters:
Specification: Bluetooth V4.0
Modulation Mode: GFSK ?/4 DQPSK,8DPSK
Voltage: 3.3-4.2V
Wireledd Transmission Distance:10m
Module Size: 9.8x8cm/3.86x3.15inc
