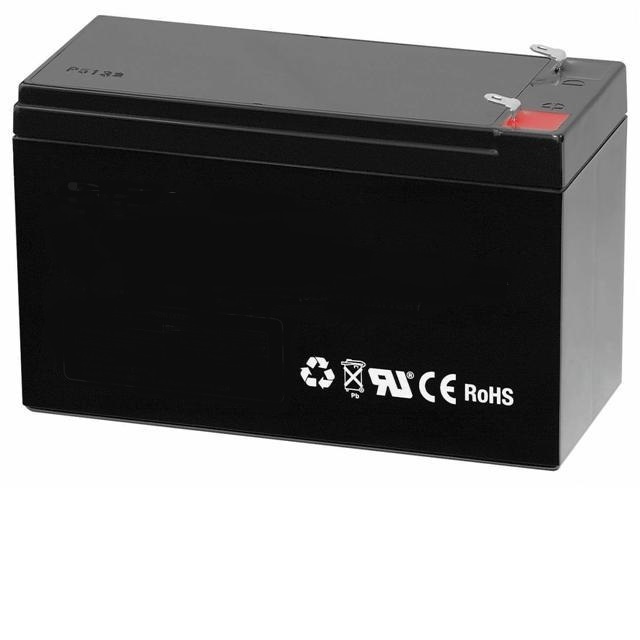

12v|7ah batería vrla de plomo acido 152x65x94mm faston:f1

Especificaciones

General Features
l Absorbent Glass Mat (AGM) technology
for efficient gas recombination of up to
99% and freedom from electrolyte
maintenance or water adding.
l Not restricted for air transport-complies
with IATA/ICAO Special Provision A67.
l UL-recognized component.
l Can be mounted in any orientation.
l Computer designed lead, calcium tin alloy
grid for high power density.
l Long service life, float or cyclic
applications.
l Maintenance-free operation.
l Low self discharge.

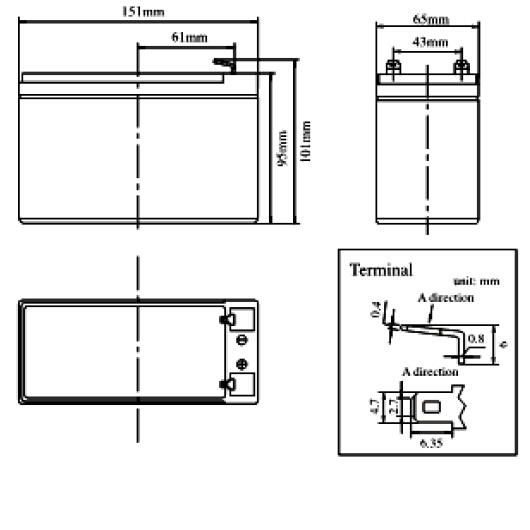

Dimensions and Weight
Length(mm / inch) 151 / 5.94
Width(mm / inch) 65 / 2.56
Height(mm / inch) 93.5 / 3.68
Total Height(mm / inch) 100 / 3.94
Approx. Weight(Kg / lbs) 1.90 / 4.17

Performance Characteristics
Nominal Voltage 12V
Number of cell 6
Design Life 3~5 years
Nominal Capacity 77oF(25oC)
20 hour rate (0.35A, 10.5V) 7Ah
10 hour rate (0.68A, 10.5V) 6.8Ah
5 hour rate (1.13A, 10.5V) 5.65Ah
1 hour rate (4.56A, 9.6V) 4.56Ah
Internal Resistance
Fully Charged battery 77oF(25oC) 28mOhms
Self-Discharge
3% of capacity declined per month at 20oC(average)
Operating Temperature Range
Discharge -20~60oC
Charge -10~60oC
Storage -20~60oC
Max. Discharge Current 77oF(25oC) 105A(5s)
Short Circuit Current 350A
Charge Methods: Constant Voltage Charge 77oF(25oC)
Cycle use 14.5-14.9V
Maximum charging current 2.8A
Temperature compensation -30mV/oC
Standby use 13.6-13.8V
Temperature compensation -20mV/oC
