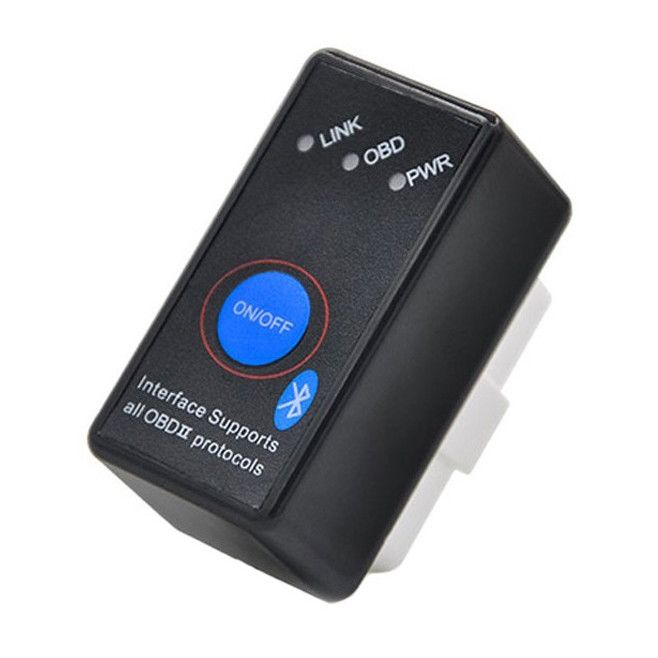

Interfaz para diagnosis de coche elm327 obdii v2.1

Especificaciones

Features:
Support car: Vehicle after 2008 are applicable, before year 2008 please double check to make sure your cart support OBD-II ECU protocol (Electronic control unit)
Interface: Bluetooth
Plug to use, low power consumption, rapid data retrieve.
Turn on/off the module by switch
Blutooth password: 0000/1234/6789
Support language:English ,Czench ,Danish,Genman,Spanish,French,Croatian,
Hungarian,Italian,Polish,Serbian,Turkish
Support Version: V2.1
All the apple iphone series app can not support this product, since the version of apple app is too high for it.
Usage:
Pairing the item by bluetooth, password 1234
All the standard OBDII software can be used for this item:
For general usage, download a phone APP called “torgue”, this software have simplified interface for data showing, but also comprehensive data info, please try this yourself.
On PC end, you can find software like SCANMASTER、PCMSCAN to use.
LEDs: red – power, blue – bluetooth status, yellow – ECU status
Voltage: 12V
Note:
Note 1: ELM327 is based car computer protocol for detecting an engine condition detector, you can detect protocol support, no comprehensive lists the list of available models, can only detect the engine system, reading clear code read data stream functions!
Note 2: Not all models can be properly read to consumption data, due to the different models, the case of some models of fuel consumption data can not be read will appear, please know! Do not read in automobile fuel economy information as a return reason!
Note 3:! Simple function is not suitable for professional car repair workshop use if unable to determine whether the use of models, carefully shot! Products will be tested before shipment, if the issues do not support the model agreement, the resulting return shipping by the buyer.
Supported:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
