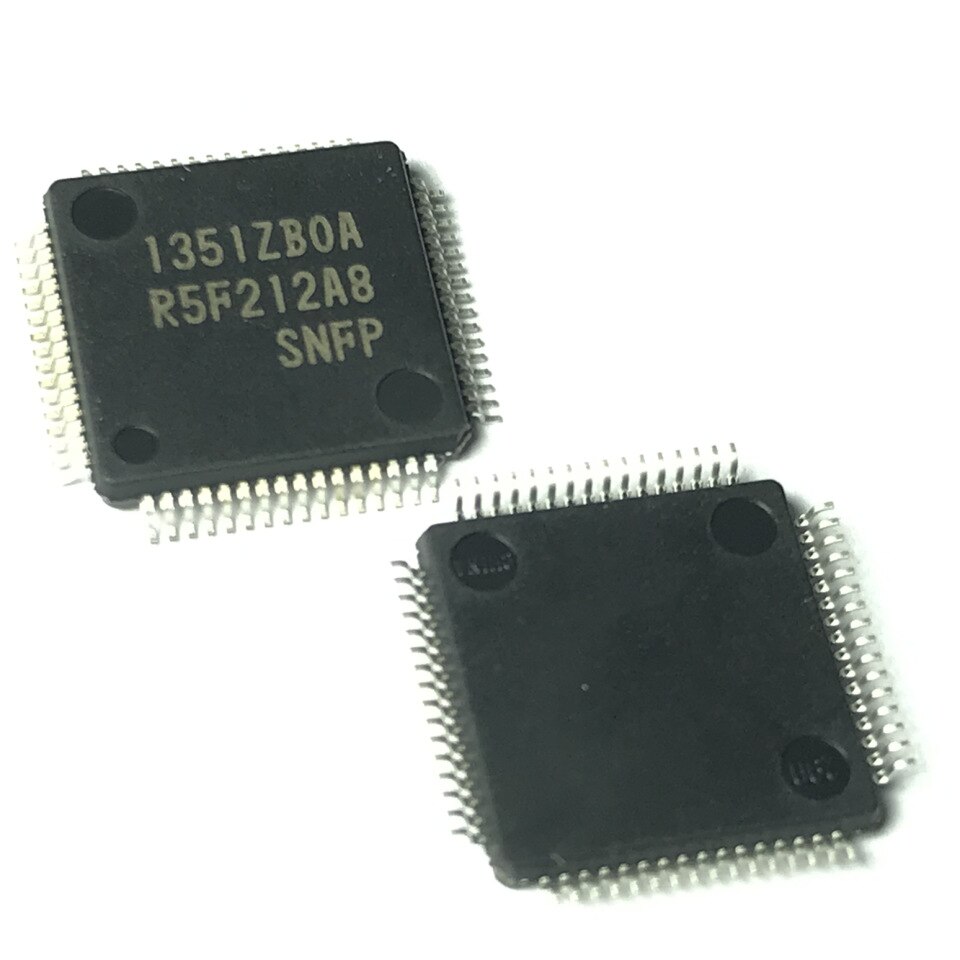

R5f212a8snfp microcontrolador mcu 16-bit r8c/2a r8c cisc 64kb flash 3v/5v 64-pin

Especificaciones

The R8C/2A is based on the R8C CPU Core. Maximum operating frequency is 20 MHz. A Flash Memory Version is available. Internal Flash Memory is programmable on a single power source.
Key Features
8-bit Multifunction Timer with 8-bit prescaler (Timer RA and RB): 2 channels
Input Capture/Output Compare Timer (Timer RC, RD, RF): 16-bit x 4 channels
Real-Time Clock Timer with compare match function (Timer RE): 1 channel
UART/Clock Synchronous Serial Interface: 3 channels
I2C-bus Interface (IIC)/Chip-select Clock Synchronous Serial Interface: 1 channel
LIN Module: 1 channel (Timer RA, UART0)
10-bit A/D Converter: 12 channels
8-bit D/A Converter: 2
Watchdog Timer
Clock Generating Circuits: XIN Clock Generation Circuit, On-chip Oscillator (High/Low Speed), Sub Clock Generation Circuit
Oscillation Stop Detection Function
Voltage Detection Circuit
Power-On Reset Circuit
I/O Ports: 55 (incl. LED drive ports)
External Interrupt Pins: 8
