Ref. AKC-108.MD9228
Pt3901-2 modulo lector tarjetas usb (mutek)
Stock: 0 Und. Ref. AKC-108.MD9228
Precio (IVA inc.) 86,27 €
| Unidades | ≥ 3 | ≥ 5 | ≥ 8 | ≥ 10 |
| DescuentoDescuentoprecio | -3%-0,257,92 | -5%-0,417,76 | -7%-0,577,60 | -10%-0,827,35 |
Si tienes dudas envíanos un WhatsApp
Envío Rápido
en 14h o 24/48h
Pago Seguro
Tarjeta, Bizum...
Garantía
Calidad asegurada
Especialistas
Consulta tus dudas
Especificaciones

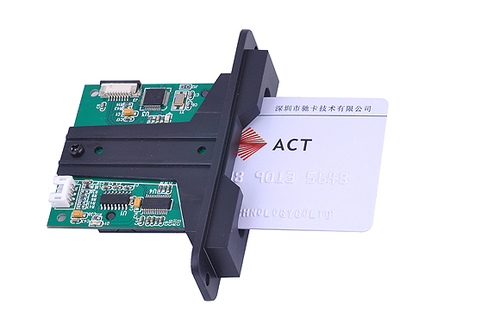

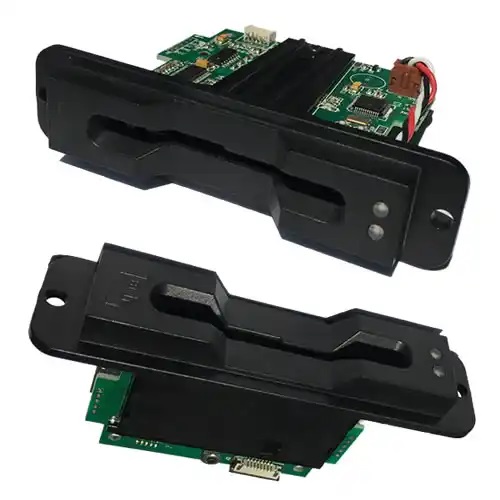

PT-3901/3902 is a half-insertion manual IC card reader&writer designed for ISO-7816 cards. The reader follows PCSC specification, which facilitates the integration and development. With simple, compact and robust design, it’s suitable for various applications in financing, gaming, casino and other self-service terminals, etc.Product Specifications:
Card Type: ISO7816 Classes A/B/C (5V, 3V), ATMEL, SIEMENS series card
Interface: USB 2.0(PCSC) or RS232(Options)
Baud Rate 9600(default)~115200 BPS
Cassette life: >300,000 times (Valid insertion)
Input: +3~5.5VDC 60mA
Operation Environment: 0°C~60°C, 5%~95%RH
Storage Environment : -20°C~60°C, 20%~90%RH
Dimension: 101mm(L) x 93mm(W) x 25mm(H)
Installation: Front Mounting with Bezel; Board Mounting W/O bezel
OS platform Tested and Supported:
Windows XP or above;
Unix/Linux Related: Debian, Ubuntu, Mac OSX, Raspberry Pi Raspbian
he model is now also available also in full-insert mode
PT3901 card reader provides an economical and stable solution for Contact Chip card reading writing. It’s applicable in the following areas:
POS terminal
Tax system
Medical and insurance system
Gaming system
Oiling machine
Public phones
