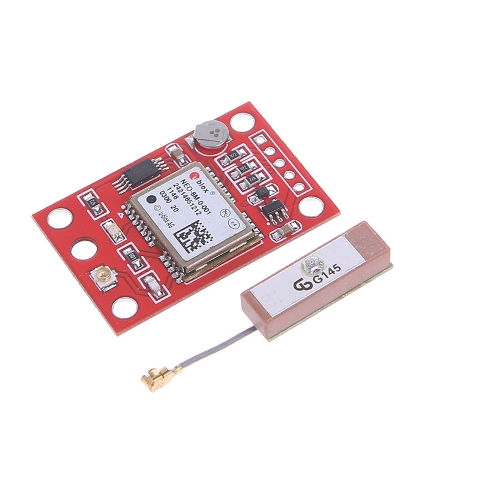

Gy-neo6mv2 modulo gps con eeprom de control de vuelo y antena amp2.5 (u-blox)

Especificaciones

Specification:

GPS Module NEO-6M
Model: GY-GPS6MV2
Input Supply Voltage Range: 3.3V-6V, on board voltage regulator maintains 3.3V
I/O Maximum Logic Level: 3.6V
WAAS (Wide Area Augmentation System) enabled GPS unit
27 seconds to first fix (TTFF) for cold starts
On board LED will blink after module acquires a position fix and will continue blinking as long as the module has a fix
50 Channel NEMA GPS receiver
UART: 9600 baud by default, but is configurable from 4800 to 115200 baud
5Hz max update rate
External EEPROM for configuration storage
Four plated mounting holes, 3mm in diameter
One additional non-plated mounting/antenna cable hole, 4mm in diameter
Position Accuracy: 2 m and better with multiple good satellite signals
Velocity Accuracy: 0.1 m/s
Maximum Velocity: 500 m/s
Heading Accuracy: 0.5 degrees while moving
On board battery for battery backed RAM (BBR). Battery is recharged through a simple diode and resistor charger circuit from the on board voltage regulator's 3.3V output
Ceramic antenna
-156dBm Hotstart sensitivity
Weight: 17.6g (0.6oz)
Dimensions of GPS Module: 36mm (1.42in) x 25.8mm (1.02in) x 4mm (0.16in)
Dimensions of Antenna: 25.5mm (1in) x 25.5mm (1in) x 8.8mm (0.35in)
Compatible with various flight control modules that provide GPS computer test software
Compatible with UART capable devices including Arduino, Raspberry Pi, MSP430, and MSP432.
Interface: RS232 TTL
