Ref. AKC-108.PT12715

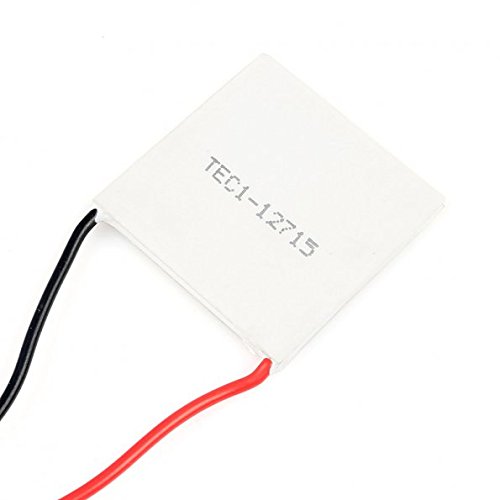

Tec1-12715 12v/15a celula peltier 40x40mm
Stock: 31 Ref. AKC-108.PT12715
Precio (IVA inc.) 8,42 €
| Unidades | ≥ 5 | ≥ 10 | ≥ 15 | ≥ 20 |
| DescuentoDescuentoprecio | -3%-0,206,41 | -5%-0,336,28 | -7%-0,466,14 | -10%-0,665,95 |
Si tienes dudas envíanos un WhatsApp
Envío Rápido
en 14h o 24/48h
Pago Seguro
Tarjeta, Bizum...
Garantía
Calidad asegurada
Especialistas
Consulta tus dudas
Especificaciones

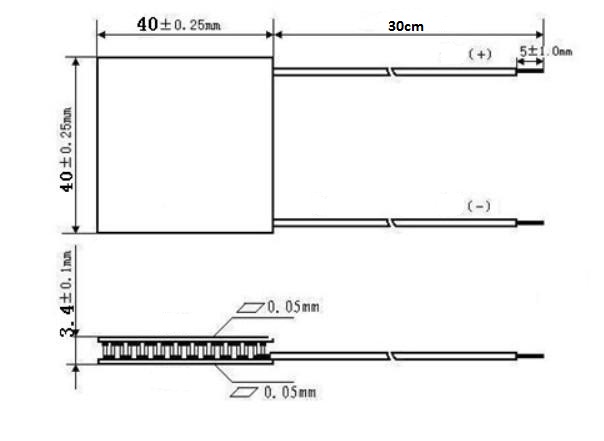

Feature:Dimensions: 40*40*3.3mm Element Logarithm 127 pairs
Wire Size: Lead Length 200±8mm RV Standard Wire Single Head 5mm Tin Plated
Internal resistance: 0.8~0.9Ω (ambient temperature 23±1°C, 1kHZ Ac test)
Maximum temperature difference: above 62°C
Operating current: Imax=15A (maximum voltage 15.5V 15A at startup)
Rated voltage: DC12V (maximum voltage: 15.5V)
Cooling power: 142W (heating surface temperature is too high will reduce the cooling power)
Assembly pressure: 85N/cm2
Working environment: Temperature range -55°C~83°C (excessive ambient temperature will directly affect the cooling efficiency)
Storage conditions: -40~60°C
