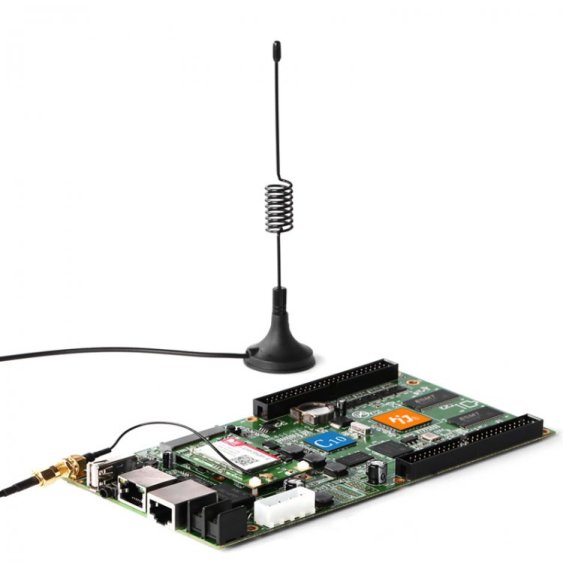

Hd-c10 tarjeta receptora-emisora con wifi (huidu)

Especificaciones

Características:

1.Soporta modulos pixel de interior y exterior, single o dual color y tambien modulo virtual
2.Soporta videos de animación, gráficos, imágenes, texto, etc.
3.Soporta 0 ~ 65536 niveles de gris
4.U-disco para ampliar de forma infinita el almacenamiento de memoria, U-disco plug-and-play
5.Soporta Estándar de dos pistas de salida estéreo
6.No necesidad IP configuración, HD-C10 / C30 podría ser identificado por el controlador de identificación de forma automática
7.Soporta gestión de clústeres de red y gestión remota de Internet / 3G.

Detalles de configuración y parámetros del sistema controlador de pantalla pixel led RGB :

Type: Indoor & outdoor full-color & single/dual color module &Virtual module
SupportMBI5041/5042,MBI5050,MY9221.MY9268 etc and PWM
Scan mode: Support 1-32 scan randomly and static
Sending card: 384(width)*256(height)
Control range: 1024(width*96(height), 304(width)*320(height)
Receiving card: HD-R500: 256W*128H
Range(1PCS): HD-R501: 256W*192H
Usually 1PCS Cabinet use 1PCS Receiving card
Gray Scale 0-65536
Video format AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image format: BMP, GIF, JPG, JPEG, PNG, GIF,PBM,PGM,PPM,XPM,XBM etc.
Text: Text and Image being edited directly. Document like Word, Excel, PPT,PPTX ;txt, rtf, html etc. can be edited as well after importing directly.
Time: Classic Analog clock, digital clock and various of clock with image background
Audio output: Double track stereo audio output
Memory: 4G Flash memory ; Indefinite expanding of U-disk memory.
Communication: 10/100M/1000M RJ45 Ethernet;3G;Internet;LAN
Working Voltage: 4.5-5.5V
Working Temperature: -20º +80º
Port: IN:5V Power x1, 10/100M/1000M RJ45 x1, USB 2.0 x1,Testing button x1
OUT:1000M RJ45 X1,Audio x1, 50PIN Port x 2
Software: HDPlayer
