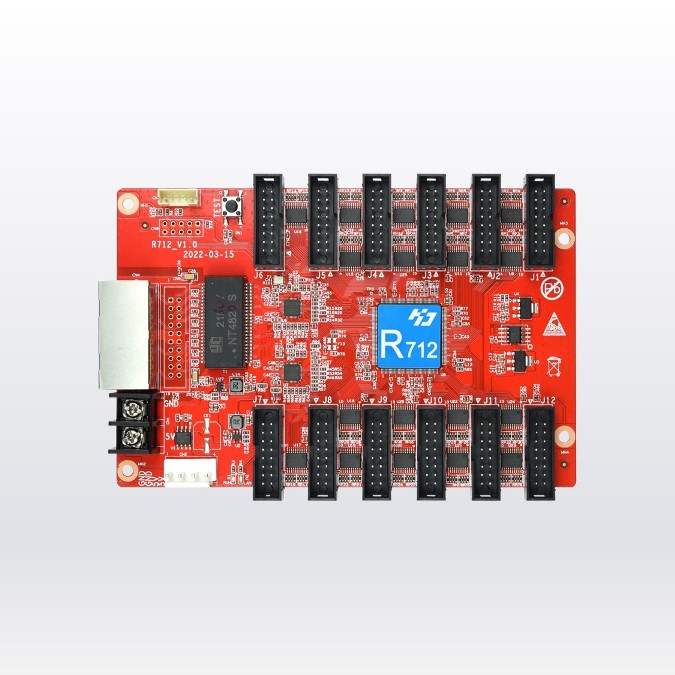

Hd-r712t tarjeta receptora hd-r712 256x1024 px (huidu) nueva version de la r512

Especificaciones

Una tarjeta R712T soporta un area de 256x1024 pixels
ESTA TARJETA ES LA NUEVA VERSION DE LA R512

Fit for sender:
A4、A5、A6、A601、A602、A603 dual mode player；
A3、A30、A30+、C10、C10C、C30、C15、C15C、C35、C35C
Asynchronous controller；
T901、T901B、T901S synchronous controller；VP210、
VP410 video processor
Module type: Compatible with all common IC module, supported most PWM
IC module.
Scan mode: Supports any scanning method from static to 1/128 scan
Communication method: Gigabit Ethernet
Multi-card connection: Receiving card can be put in any sequence
Gray scale: 256~65536
Smart setting: A few simple steps to complete the smart settings, through the
screen layout can be set to go with any alignment of the screen
unit board
Test functions: Receiving card integrated screen test function,Test display
brightness uniformity and display module flatness.
Communication distance: Super Cat5,Cat6 network cable within 146 meters
Port: 5V DC Power*2,1Gbps Ethernet port*2, HUB75E*12
Input voltage: 4V-6V
Working temperature: -40º~85ºC

Codigos alternativos: HD-R500, HD-R501, HD-R512
