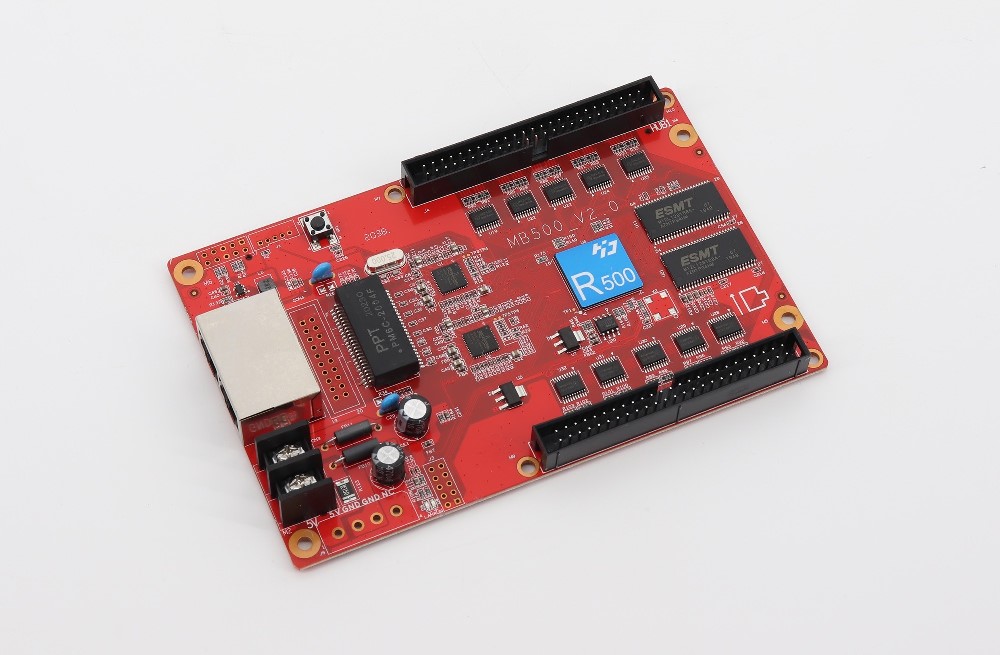

R500 tarjeta receptora hd-r500

Especificaciones

Huidu HD-R500 asincrónico completo en cascada receptor tarjeta especificación de Color:
Module Type

Be compatible with indoor/outdoor single/dual/full color module;
virtual module is supported;
PWM chips such as MBI5041/5042, MBI5050, MY9221, MY9268 are supported;

Scan Mode

All scan modes from static to 1/32 are supported.

Area of single receiver card

256*128（recommended）

Quantity of single network line cascading receiver card

64pcs

Connection of multiple cards

Receiver card can rank randomly, setting the connection location by software's

automatic identification or by hand.

Grey Level

0-65536

Smart Setting

Smart setting is completed by few simple steps, screen unit plates in any alignment

can be matched by screen alignment setting.

Play Content

Video, animation, picture, text, word, table, PPT, clock and time are supported to play.

Test Function

The receiving card integrates the screen testing function, users can carry out color

band (including red, green, blue and white), gray, slant, grid and multi points

tests by pressing the self-detection button.

Time Switch

Support customized/computer time swith

Port

Two 5V power ports，two Ggabit Ethernet ports and a group of standard switch ports

Input Voltage

4V-6V
