Kit 2 x sondas osciloscopio 100mhz x1x10 cable: 1.2mt

Especificaciones

Features:

100% high quality.
Usable with scopes having Bandwidth up to 100 MHz
Interchangeable Probe Tip
Coaxial Reed Switch
Modular Construction

Specification:

Model: P6100
Color: Gray
Compensation range: 10 to 30 pF
Input Capacitance: 1X: 85pF-120pF; 10X: 18.5pF-22.5pF
Input Resistance: 1X: 1Mohm; 10X: 10Mohm;
Bandwidth: 1X: DC-6MHZ, 10X: 100MHz
Attenuation Ration: 1:10
Cable Length: about 120cm
Operating Temp: -15°C~+75°C
Operating Humidity: Maximum Input Voltage: 1X: 300 VDC+Peak AC, 10X: 600 VDC+Peak AC

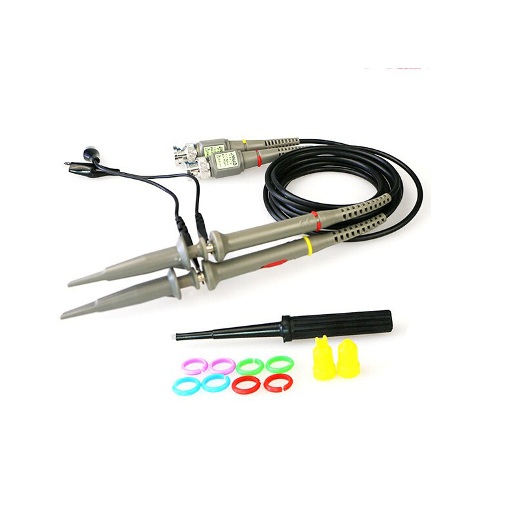

Package includes:

2 x Probe Rod
2 x Probe Tip
8 x Maker Bands
2 x Tip Locating sleeve
1 x Manual
