Ref. AKC-191.0122.01

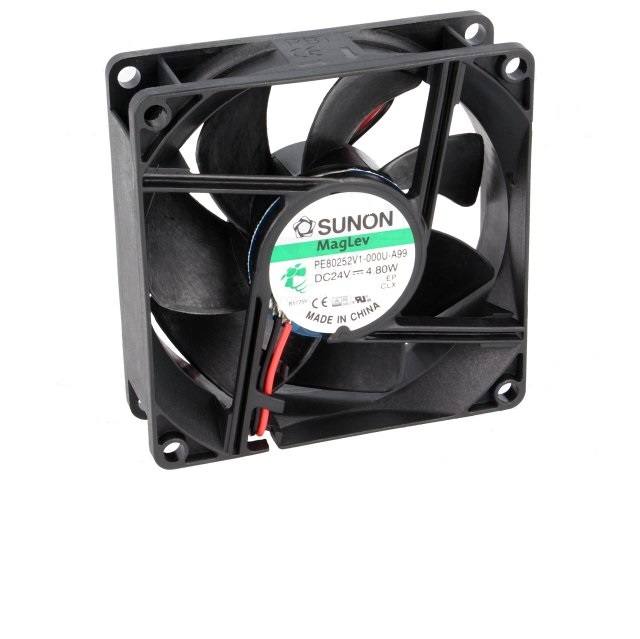

80x80x25 dc24v ventilador 33db, 102m3 (sunon) vapo
Stock: -9 Und. Ref. AKC-191.0122.01
Precio (IVA inc.) 7,85 €
Si tienes dudas envíanos un WhatsApp
Envío Rápido
en 14h o 24/48h
Pago Seguro
Tarjeta, Bizum...
Garantía
Calidad asegurada
Especialistas
Consulta tus dudas
Especificaciones
Manufacturer SUNONFan type DC
Fan kind axial
Supply voltage 24V DC
Operating voltage 10...27.6V
Fan dimensions 80x80x25mm
Power consumption 4.8W
Rated current 0.2A
Fans efficiency 69m3/h
Noise level 33dBA
Bearing type Vapo
Rotational rate/speed 4800 (±10%)rpm
Weight 91g
Current and power consumption tolerance ±15%
Min. insulation resistance 10MΩ
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class A
Operating temperature -10...70°C
Leads 2 leads
Static pressure 10.41mm H2O
Cable length 300mm
Fan motor brushless DC motor
Flammability rating UL94V-0
Wire size 24AWG
Additional functions Autorestart
