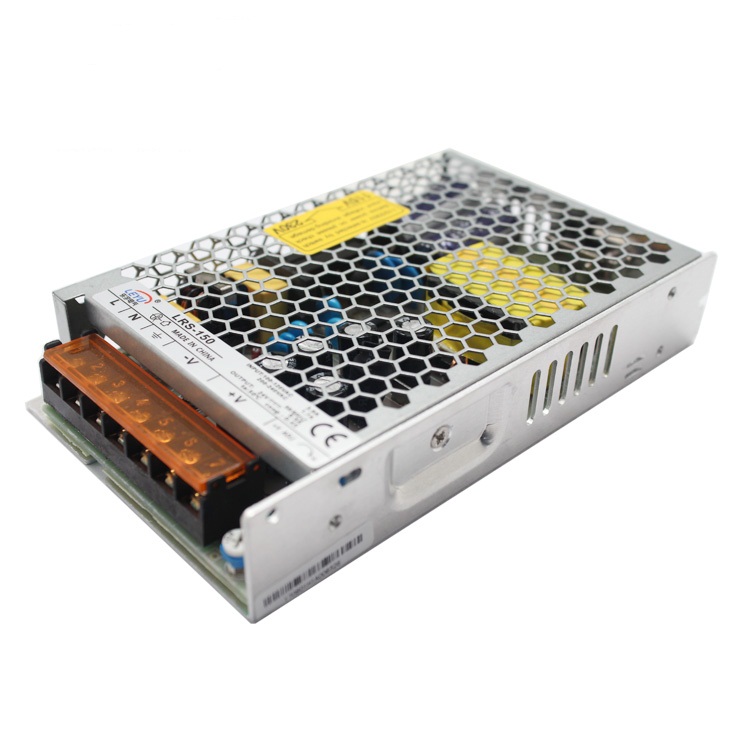

Lrs-150-12, 150w, 12.5a, alimentador industrial 159x97x30mm

Especificaciones

150W Single Output Switching Power Supply LRS-150 series

Features:

AC input range selectabl by switch

Withstand 300VAC surge input for 5 seconds

Protections: Short circuit / Overload / Over voltage/ Over temperature

Cooling by free air convection

LED indicator for power on

100% full load burn-in test

High operating temperature up to 70º

High efficiency, long life and high reliability

SPECIFICATION
OUTPUT
Model: LRS-150-12
DC Voltage: 12V
Rated Current: 12.5A
Current Range: 0~12.5A
Rated Power: 150W
Ripple & Noise: 150mVp-p
Voltage Adj. Range: 10.2-13.8V
Voltage Tolerance: ±1.0%
Line Regulation: ±0.5%
Load Regulation: ±0.5%
Setup, Rise Time 500ms,30ms/230VAC 500ms/115VAC at full load
Hold Up Time 40ms/230VAC 35ms/115VAC at full load
INPUT
Voltage Range 85 ~ 132VAC / 170 ~ 264VAC 240 ~ 370VDC (switch on 230VAC)
Frequency Range 47 ~ 63Hz
Efficiency 87.5%
AC Current 2.8A/115VAC 1.6A/230VAC
Inrush Current: Cold start 60A/230VAC
Leakage Current PROTECTION
Over Load
110 ~ 140% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage
13.8 ~ 16.2V
Protection type: Hiccup mode, recovers automatically after fault condition is removed
