Lrs-150-24v, 150w, 6.5a, alimentador industrial slim 162x97x30mm

Especificaciones

Dc output voltage: 24V
Rated output current: 6.5A
Output current rage: 0-6.5A
Rated Power: 156W
Wave and noise: 200mVp-p
Voltage ADJ. range: 21.6-28.8V
Voltage tolerance: ±1%
Line Regulation: ±0.5%
Load Regulation: ±0.5%
Efficiency: 89.0%
AC input voltage range AC85~AC264V 47~63Hz; 240~370VDC
Input current 2.8A/115V 1.6A/230V
AC INnrush current Cold-start 60A/230V
Overload proctection 110%~140% Potection type: Hiccp mode,recobers
automatically after condition recoverd
Setup rise time 500ms,30ms/230VAC 500ms,30ms/115VAC at full lod
Hold up time 40ms/230VAC ,35ms/115VAC at full lod
Withstand voltage I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG: 0.5KVAC
Isolation resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC
/25°C/70%RH
Working temperature -30°C~+70°C
Overall dimension 162*97*30mm

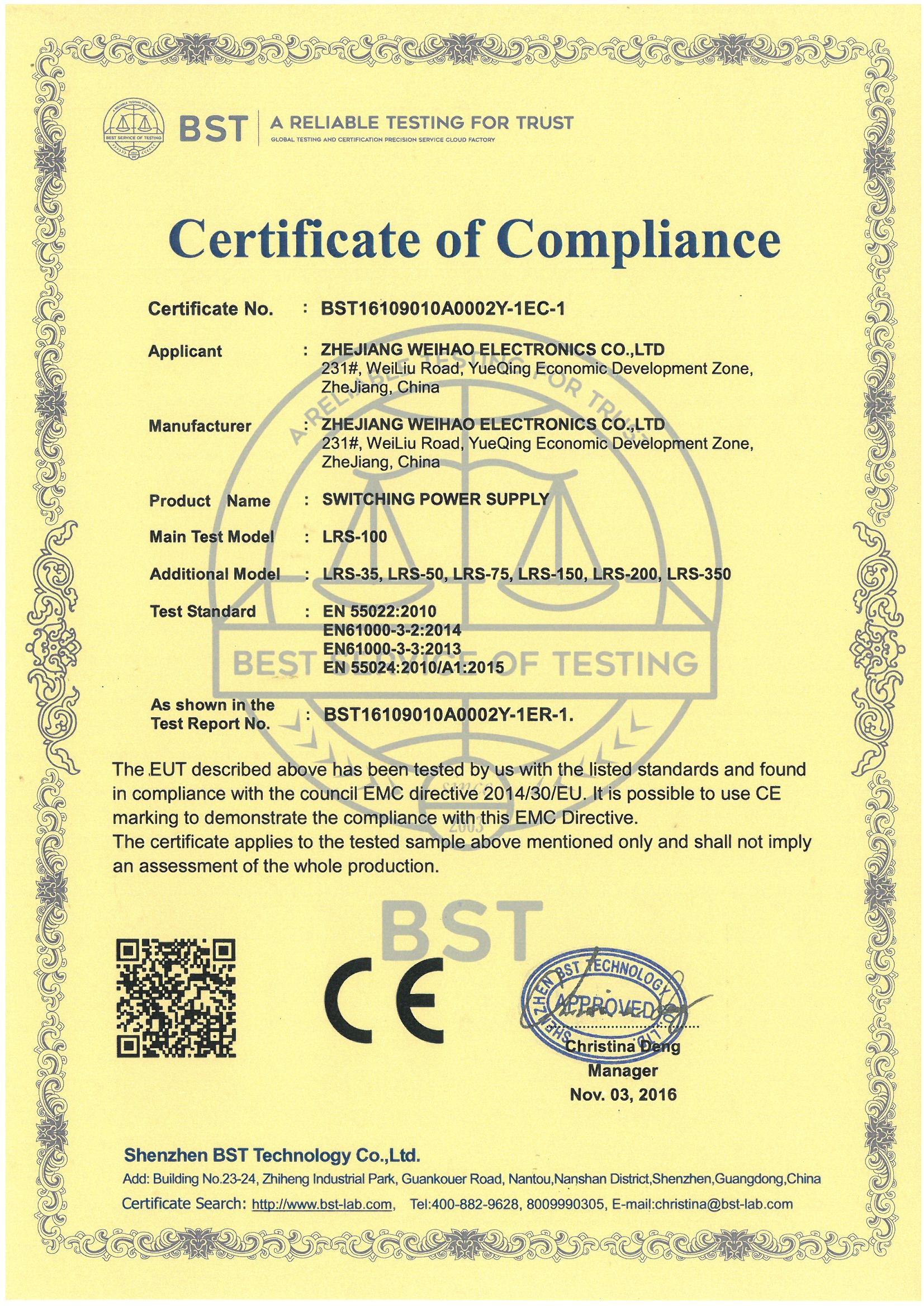

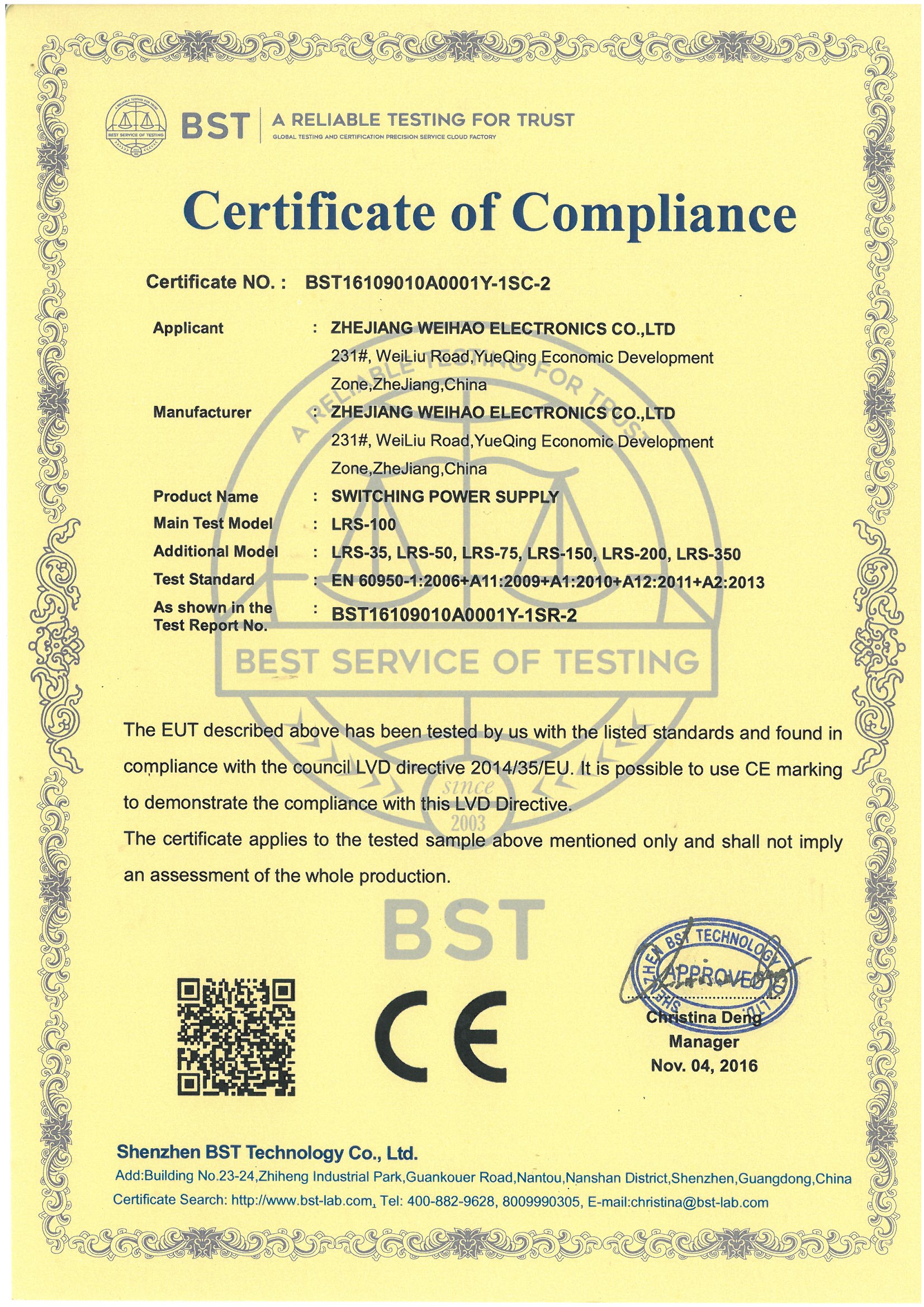

Safety standards Meet EN60950
EMC standards Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024
Weight 0.4Kgs
