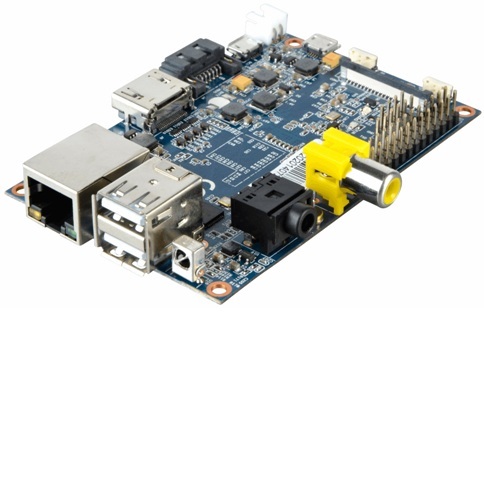

Banana pi-m1 placa miniordenador compatible raspberry

Especificaciones

CPU: A20 ARM Cortex™-A7 Dual-Core
GPU: ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory: (SDRAM) 1GB DDR3 (shared with GPU) Onboard
Storage: SD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk Onboard
Network: 10/100/1000 Ethernet RJ45,optional WIFI
Video Input: A CSI input connector allows for the connection of a designed camera module
Video Outputs: HDMI, CVBS , LVDS/RGB
Audio Output: 3.5 mm Jack and HDMI
Power Source: 5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)
USB Ports: 2.0 2 (direct from Allwinner A20 chip)
Buttons: Reset button: Next to MicroUSB connector Power button: Next to Reset button
Boot button (Optional): Behind HDMI connector
GPIO: (2X13) pin GPIO,UART,I2C bus,SPI bus with two chip selects, CAN bus,ADC,PWM,+3.3v,+5v,ground.
LED Power Key & RJ45
Remote IR (Optional)
OS: Android 4.2,Firefox OS and Linux etc.
Product size: 92 mm × 60mm
Weight: 48g
working temperature: range -15~75℃
