Modulo display oled para banana/raspberry

Especificaciones

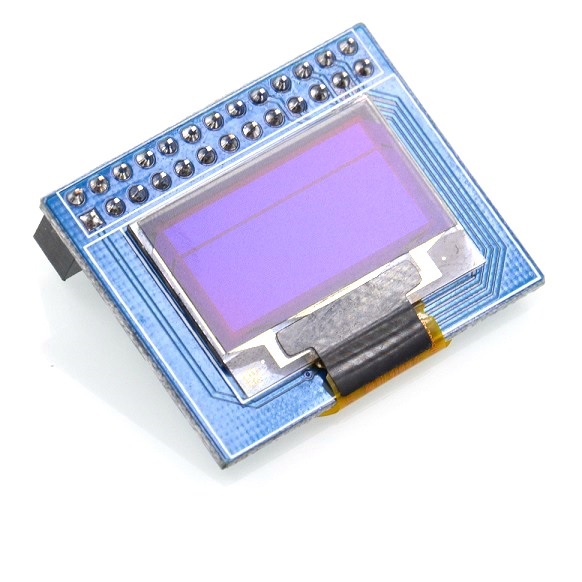

Banana Pi BPI-OLED - Display Module

Banana Pi
OLED display module is made of 128x64 yellow and blue OLED pixels and
measures only 0.96 inch in diagonal. The SSD1306 controller communicates via 4-wire SPI. The display has its own backlight, so no backlight LED
is required. This reduces the power required to run the OLED and is the
reason why the display has such a high contrast, extremely wide viewing
angle and extreme operating temperature.

Features

Ultra low power supply
Maximum current 100 uA
3.3 V work voltage (min 1.6 V, max. 3.6 V)
Internal DC/DC voltage converter
SPI driver support (at) 64 MHz (typ.), 125 MHz
FP frequency: 64 fps (typ), 368 fps
Outline Drawing: 370 x 300 mm
Number of pixels: 128 x 64
Panel size: 26.70 x 19.26 x 1.45 mm
Active area: 21.74 x 10.864 mm
Pixel pitch: 0.17 x 0.17 mm
Pixel size: 0.154 x 0.154 mm
Weight: 15 g
